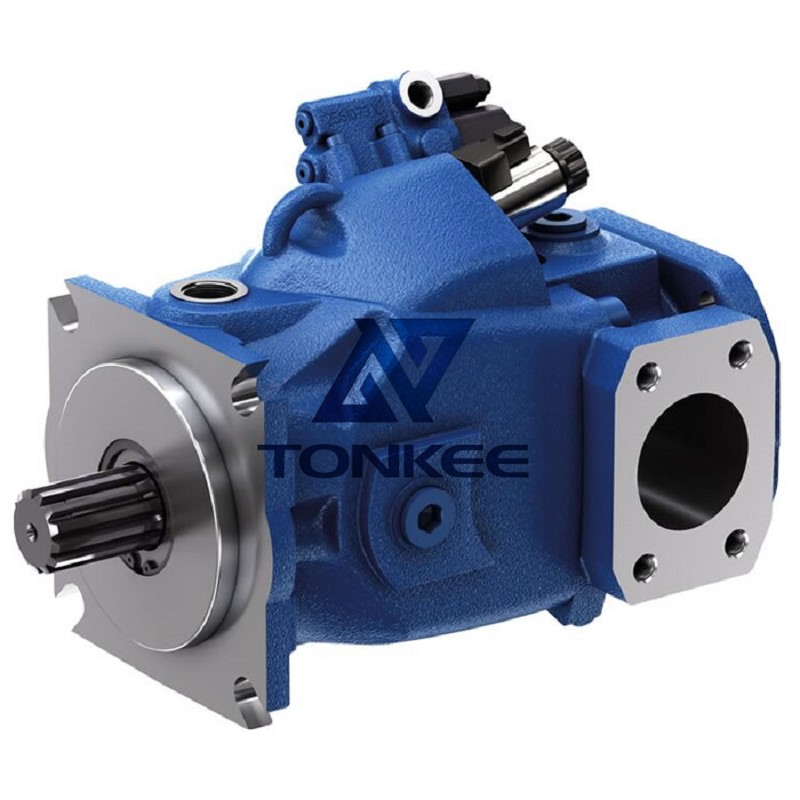

Model: A10VOH 071 Rexroth Hydraulic Pump
Type: It's an axial - piston variable - displacement hydraulic pump. The design typically allows for efficient and precise control of hydraulic fluid flow, making it suitable for a wide range of applications such as in industrial machinery, mobile equipment, and construction machinery.
Performance Specifications
Displacement
The nominal displacement of the A10VOH 071 pump is around 71 cm³/rev. This displacement value is a key factor in determining the flow rate of the pump when combined with the rotational speed.
Pressure
Rated Pressure: The pump usually has a rated working pressure in the range of 280 - 350 bar, depending on the specific configuration and application requirements. This rated pressure indicates the normal operating pressure for which the pump is designed to provide reliable and efficient performance.
Maximum Pressure: It can handle a maximum pressure of up to, say, 400 bar in short - term or exceptional operating conditions. However, continuous operation at such high pressures may affect the pump's lifespan and performance.
Speed
Maximum Rotational Speed: The maximum rotational speed of the pump at maximum displacement is typically around 2200 - 2500 rpm. This speed limitation is important to ensure the mechanical integrity of the pump and to prevent issues such as excessive wear, cavitation, and reduced efficiency due to over - speeding.
Minimum Rotational Speed: There is also a minimum rotational speed below which the pump's performance may be affected. This is usually around 500 - 800 rpm, below which proper fluid flow and pressure build - up may not occur.
