Displacement: 32 cm³/rev. This is the volume of fluid that the pump displaces in one revolution.
Rated Pressure: Usually 350 bar. It's the pressure at which the pump can continuously operate under normal conditions to deliver the rated flow.
Maximum Pressure: Can reach up to 400 bar for short periods.
Rated Speed: For example, 1800 rpm. At this speed, the pump is designed to achieve optimal performance in terms of flow and pressure.
Flow Rate: At a rated speed of 1800 rpm, the flow rate is approximately 57.6 L/min (calculated as displacement × speed / 1000), assuming no significant leakage.
Design and Construction Specifications

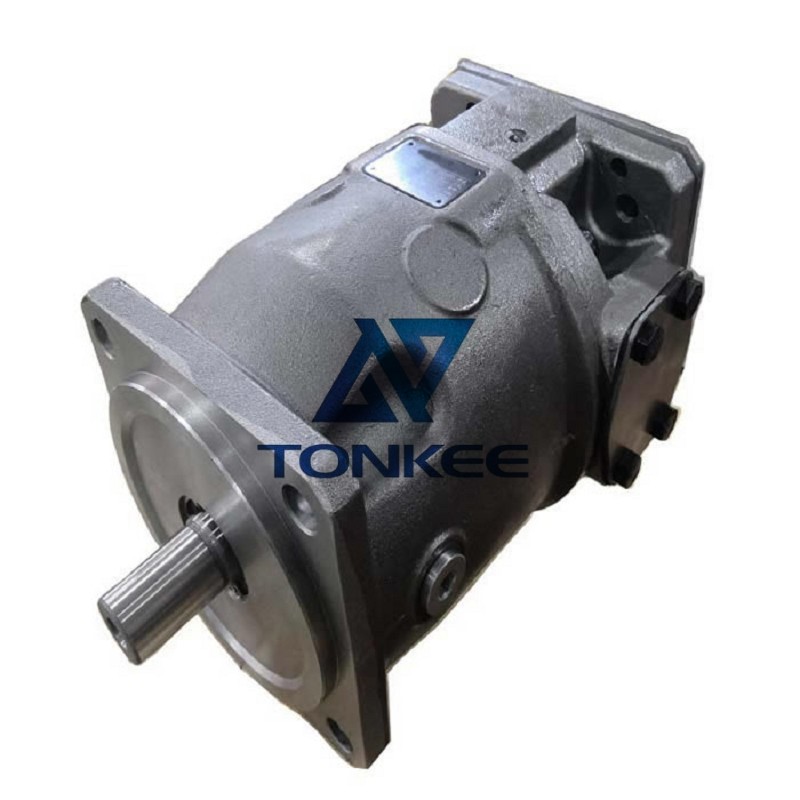

Pump Type: Axial piston pump. The pistons are arranged axially, enabling high efficiency and accurate control of fluid flow.
Drive Type: Can be driven by various prime movers like electric motors or internal combustion engines via couplings or gearboxes. The drive shaft is made of high-strength material to endure the torque and forces during operation.
Port Connections: Usually has SAE or ISO standard ports for inlet and outlet. The port sizes are designed to match the flow requirements and ensure proper hydraulic connections.
Mounting Style: It may have flange mount or foot mount options, facilitating easy installation on different equipment. The mounting surfaces are precisely machined for proper alignment and stability.
